Precision at Scale: 1,400 Medical Components Produced on a Single Build Platform

Sinto Advanced Ceramics (formerly Bosch Advanced Ceramics) is redefining the technological boundaries of advanced ceramic additive manufacturing (AM). As a specialized contract manufacturer, the company focuses on producing highly complex components for demanding applications, particularly within the medical device sector. In a recent project, the team manufactured a ceramic insulating sleeve for a laparoscopic instrument used in minimally invasive surgery. The technological breakthrough: through precise scaling of ceramic 3D printing, 1,400 of these highly delicate components can be reproducibly manufactured in a single print job.

The Challenge: Extreme Thin-Walled Miniaturization

The design requirements from the medical device OEM were uncompromising: a sterile, biocompatible component with a maximum outer diameter of 1.3 mm and a wall thickness of just 90 µm. This micro-geometry is mission-critical to ensure reliable electrical insulation between two conductive assemblies within the tight confines of the laparoscope. Sinto Advanced Ceramics utilized Lithography-based Ceramic Manufacturing (the LCM process) to tackle this challenge. This technology provides a level of geometric design freedom and feature resolution that conventional forming processes simply cannot achieve at this scale.

Agile Development and Iterative Validation

Balancing structural integrity, mechanical robustness, and excellent electrical insulation properties required a close, iterative development process for the insulating sleeve. The toolless nature of additive manufacturing offered a decisive advantage, allowing design modifications and process parameters to be adjusted and tested without delay. A total of four design iterations underwent rigorous testing to validate the optimal balance of wall thickness, outer diameter, and mechanical stability under real-world operating conditions.

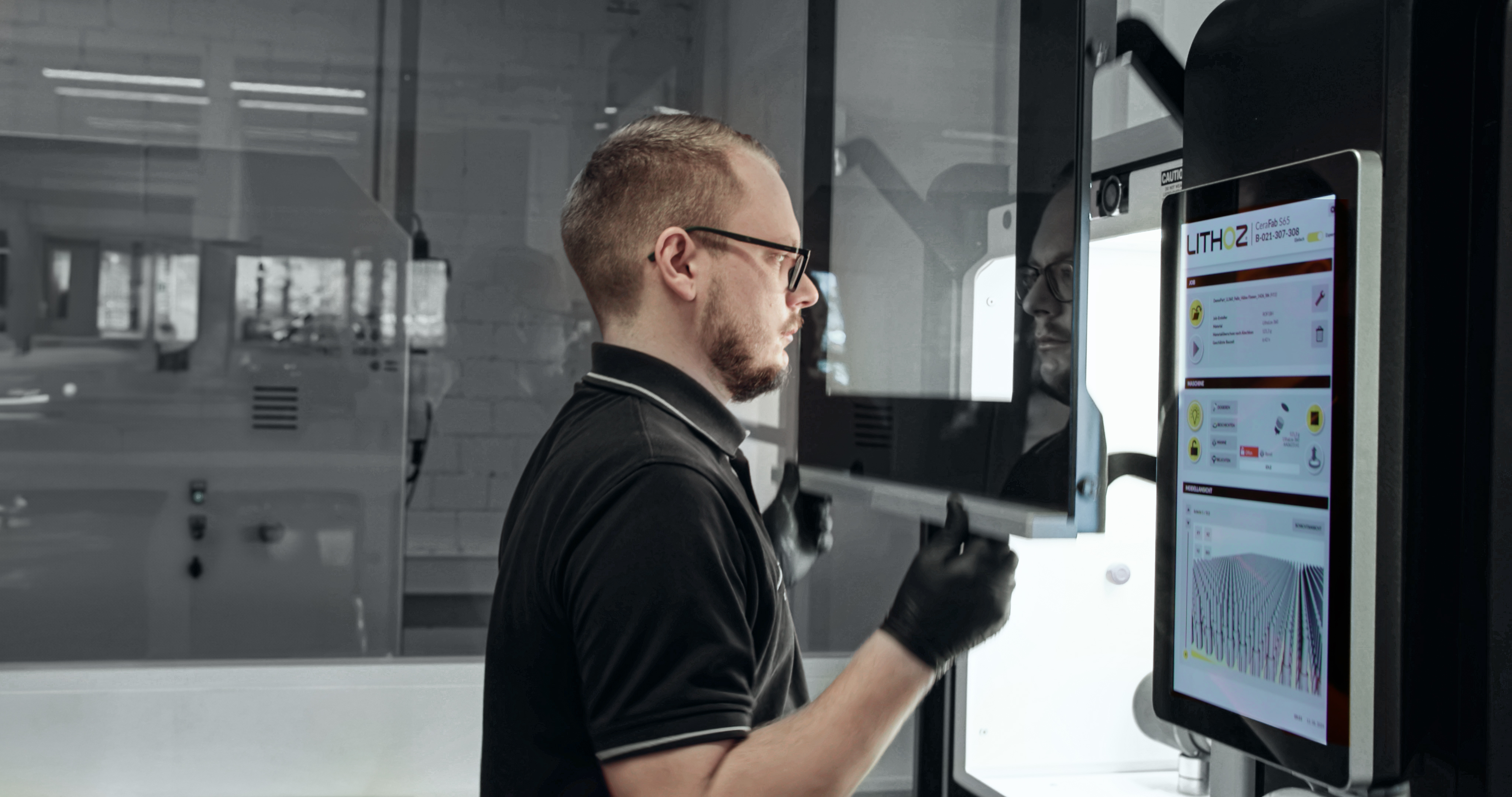

For production, the company utilizes advanced Lithoz CeraFab systems featuring a lateral resolution of 40 µm. This high-precision optical resolution is essential to consistently achieve the required 90 µm wall thickness during the subsequent thermal sintering process without dimensional deviations.

Scaling to Industrial Series Production

Following the successful validation of the prototyping phase, Sinto Advanced Ceramics transitioned the project into industrial series production. With a capacity of 1,400 parts per batch, the annual customer demand of 20,000 units is met with exceptional time efficiency and cost-effectiveness.

A critical factor in maintaining consistent quality at this scale is the automated cleaning process proprietary to Sinto Advanced Ceramics. This system enables extremely gentle, non-contact handling of the highly fragile green parts immediately after printing. Excess, uncured slurry is thoroughly removed even from the most intricate micro-features without damaging the ultra-thin 90 µm walls. This ensures flawless batch consistency and significantly reduces scrap rates.

Material Advantages for Surgical Applications

For surgical micro-components, ceramic additive manufacturing (Ceramic AM) delivers significant economic and technical advantages over micro-ceramic injection molding (µCIM):

• Zero Tooling Costs: The costly and time-consuming fabrication of high-precision micro-injection molds is entirely eliminated, drastically shortening time-to-market.
• Maximum Functional Integration: Complex geometries can be printed as a single, monolithic component in a single step.

The material chosen for this application is LithaLox 360, a high-purity alumina. This material is characterized by its excellent dielectric strength (electrical insulation), high chemical resistance, and exceptional thermal stability. This is crucial for medical device manufacturers: the material withstands aggressive cleaning chemicals and repeated sterilization cycles (such as autoclaving in hospitals) during daily clinical use without degradation or loss of performance.

Conclusion

This project clearly demonstrates the immense potential of ceramic 3D printing for medical device manufacturing. The technology enables the highly precise, scalable series production of complex micro-components, serving as a powerful driver of innovation for next-generation medical device design. Sinto Advanced Ceramics has set a new industry benchmark for precision, consistency, and volume manufacturing in technical ceramics.

For more detailed insights into this project, read the full article in PIM Magazine’s Autumn 2024 edition here
